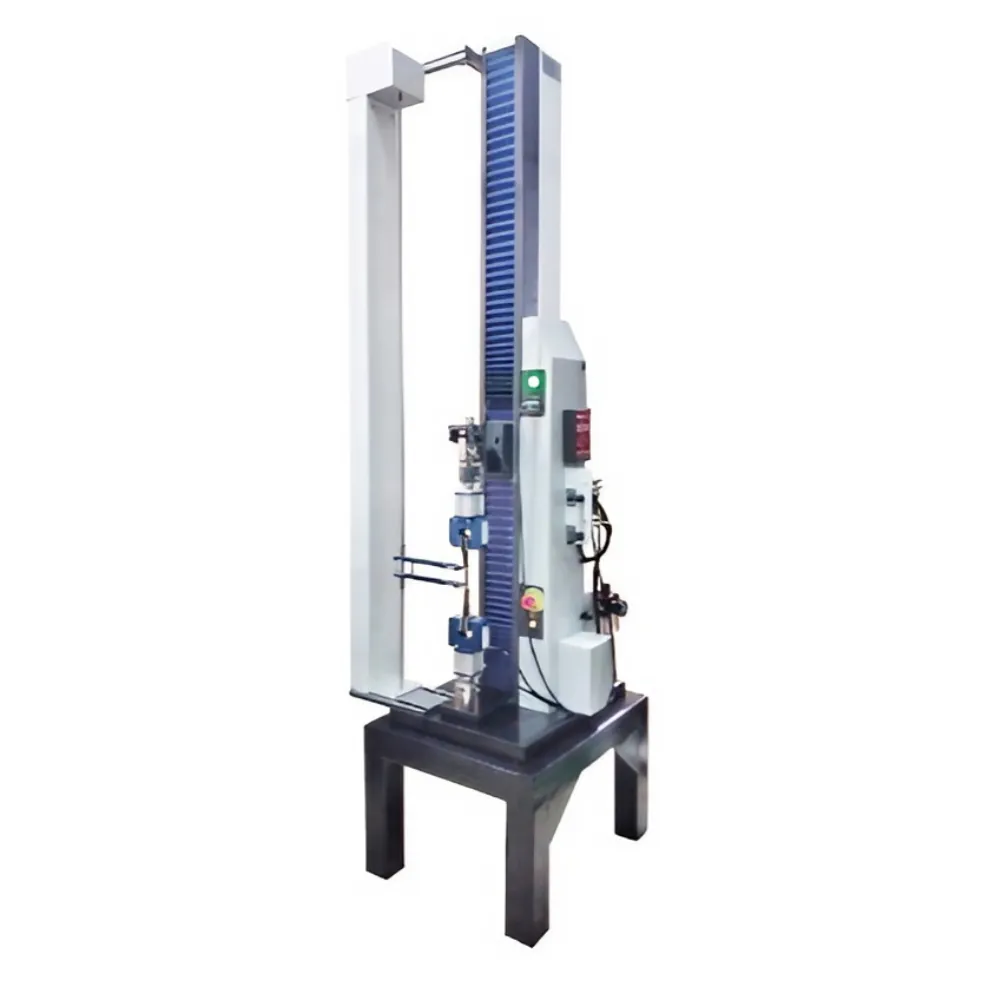

NRI-TS500-XS

The NRI-TS500-XS Single Column Universal Testing Machine is designed for precision tension and compression tests up to 5 kN. Featuring a robust linear motion guide, servo motor, and high-efficiency planetary gearbox, it delivers smooth, low-noise performance. Compatible with a wide range of accessories, it meets various international standards (ASTM, ISO, EN, GB/T) for testing plastics, wires, bars, biomaterials, adhesives, and more — powered by advanced NRI V.5 software for accurate data analysis.

Application

The series single column testing system for tension and compression applications where loads less than 5kN.

• Designed with strong linear motion guide and servo motor.
• Servo motore quipped with precise planet-gear speed reducer providing higher efficiency and lownoise.
• Wide range of test accessories allows to meet test requirements of different standards and fordifferent materials.
• This series is suitable to test: plastics,wires, bars, biomaterials, adhesive materials,etc.

Standards

• ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892,ISO7438, ISO7500-1, EN10002-4,
  GB/T228-2002, HGT3844-2008QBT11130-1991, GB13-22-1991, HGT3849-2008, GB6349-1986, GB/T1040.2-2006, ASTMC165, EN826

Software

• NRI V.5
